Timeline PRO has three mandatory fields that are required to
successfully create a timeline chart. Click on each link to learn more.
Date Hierarchy: Use the default Power BI date
hierarchy; or stack multiple columns (one for each time unit) to build a custom
hierarchy. Featured time units will be used as drill down levels.
Date Value (X-Axis): Add a single column
of datetime values. This data will be used to determine the X-axis placement of
the adjacent Series values. Note: Datetime values in this field must
be provided using the smallest time unit in your Date Hierarchy field.
Series X(1-25): Add numerical values or
measures for display on the Y-axis. Drag each column in its own Series field.
You can display up to 25 series on the same visual and customize each series
separately.
This visual also has two optional fields:
Legend: Split Series values into visually distinct segments that can be displayed as stacks or clusters.

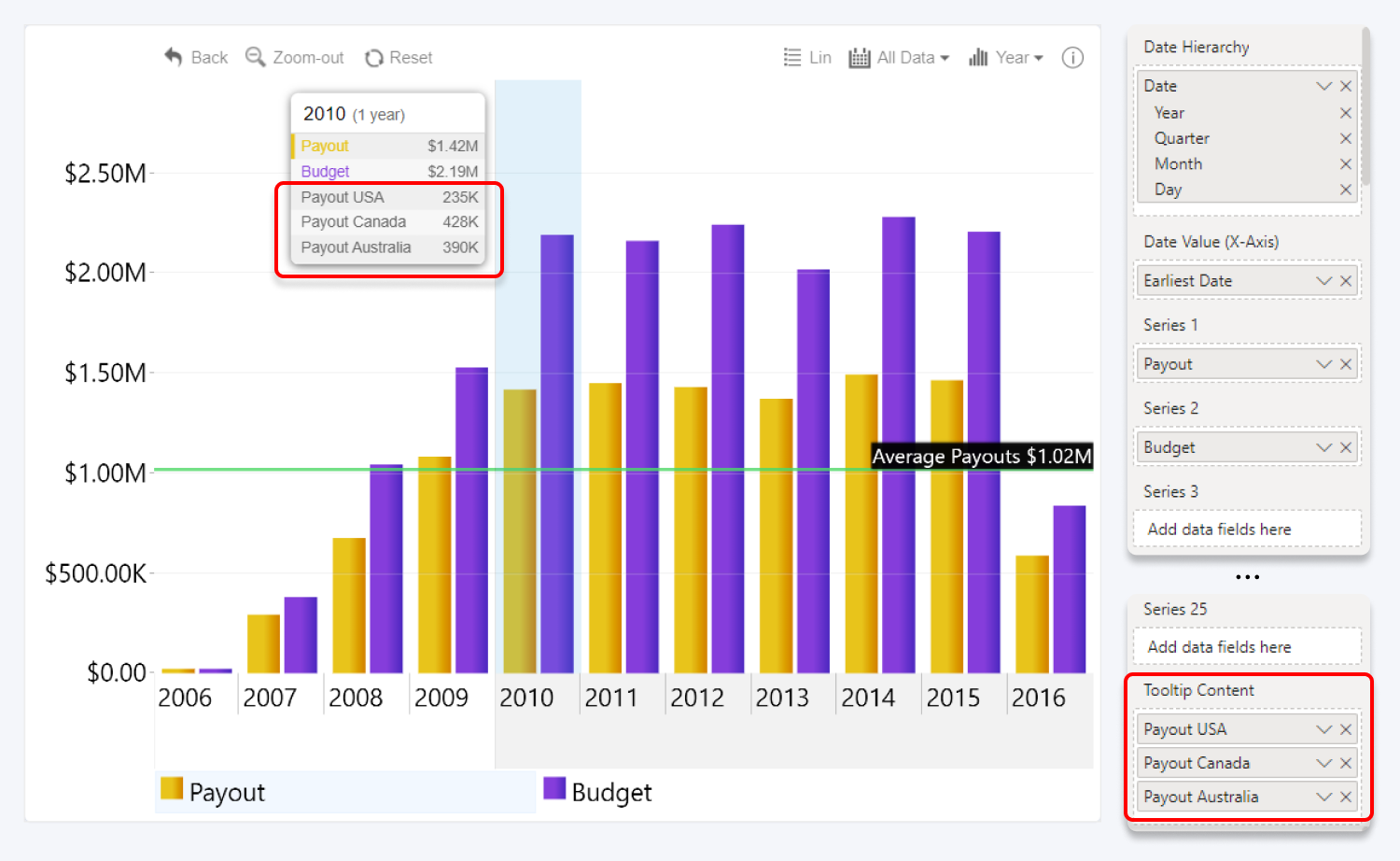

Tooltip Content: One or multiple columns
of text/numerical values or measures that will be displayed in the tooltip when
the user hovers over the data point.
You can find a list of column names that are supported by
the Date Hierarchy field on this documentation page.
Read about the drill-through setup process
for Timeline PRO on this page: Drill-through
setup.
