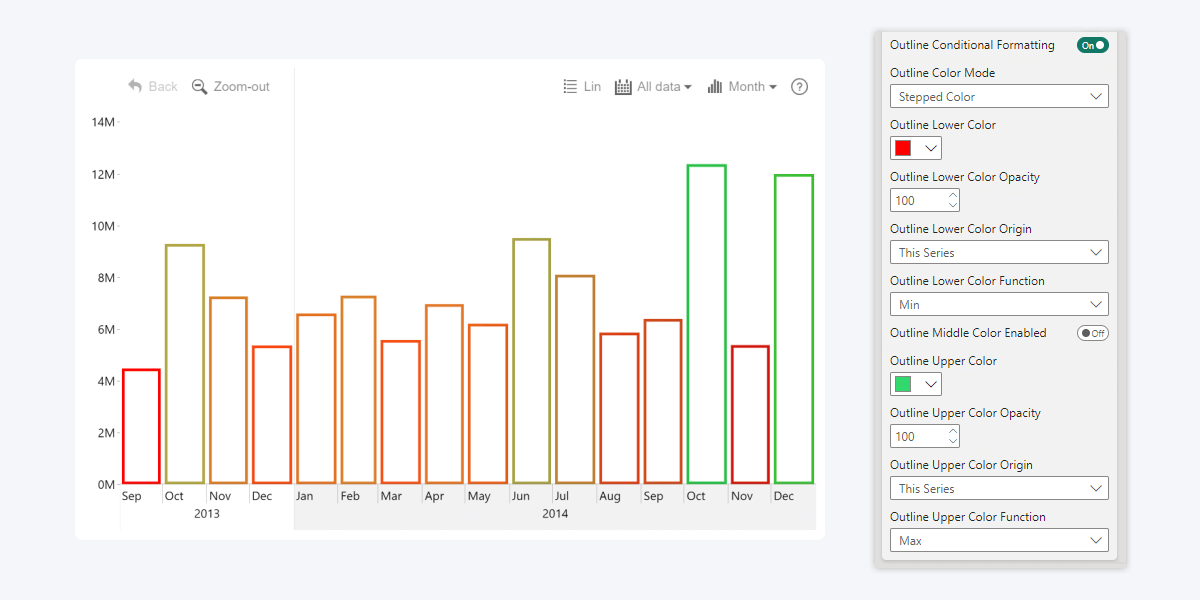

This toggle enables conditional formatting for the series
outlines. This feature can automatically apply specific formatting rules
depending on your selected conditions (for example, mark columns or area
segments with red if they are below a KPI or target, and green if they exceed
it).
Outline Conditional Formatting can be enabled and configured independently of Conditional Formatting for series fill colors. Once enabled, additional settings will be revealed:
- Outline Color Mode
- Outline Lower Color
- Outline Lower Color Opacity
- Outline Lower Color Origin1
- Outline Lower Color Function1,3
- Outline Middle Color Enabled
- Outline Middle Color2
- Outline Middle Color Opacity2
- Outline Middle Color Origin2
- Outline Middle Color Function2,3
- Outline Upper Color
- Outline Upper Color Opacity
- Outline Upper Color Origin
- Outline Upper Color Function3
1Available if Outline Color Mode is Stepped Color or Gradient.
2Available if the Outline Middle Color Enabled toggle is on.
3Available if the Origin setting for the color is This Series.
