Quickstart

Drill Down Donut PRO is an exciting and user-friendly way to explore multi-level categorical data in depth and quickly find actionable insights.


Before you begin

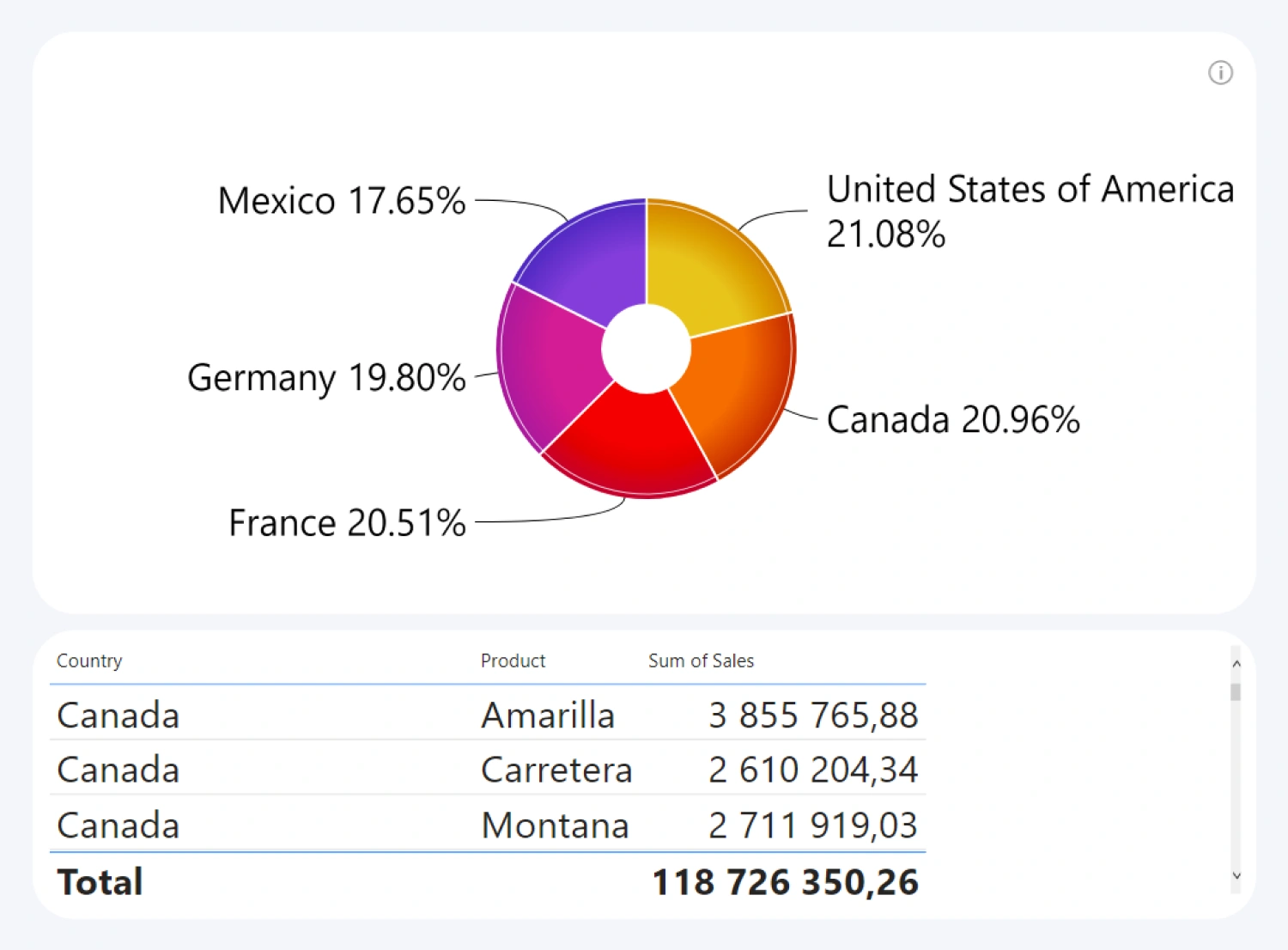

This visual is designed for categorical data. Make sure that your data set has at least one column that contains categories, and another column with numerical values for each category.


donut_data

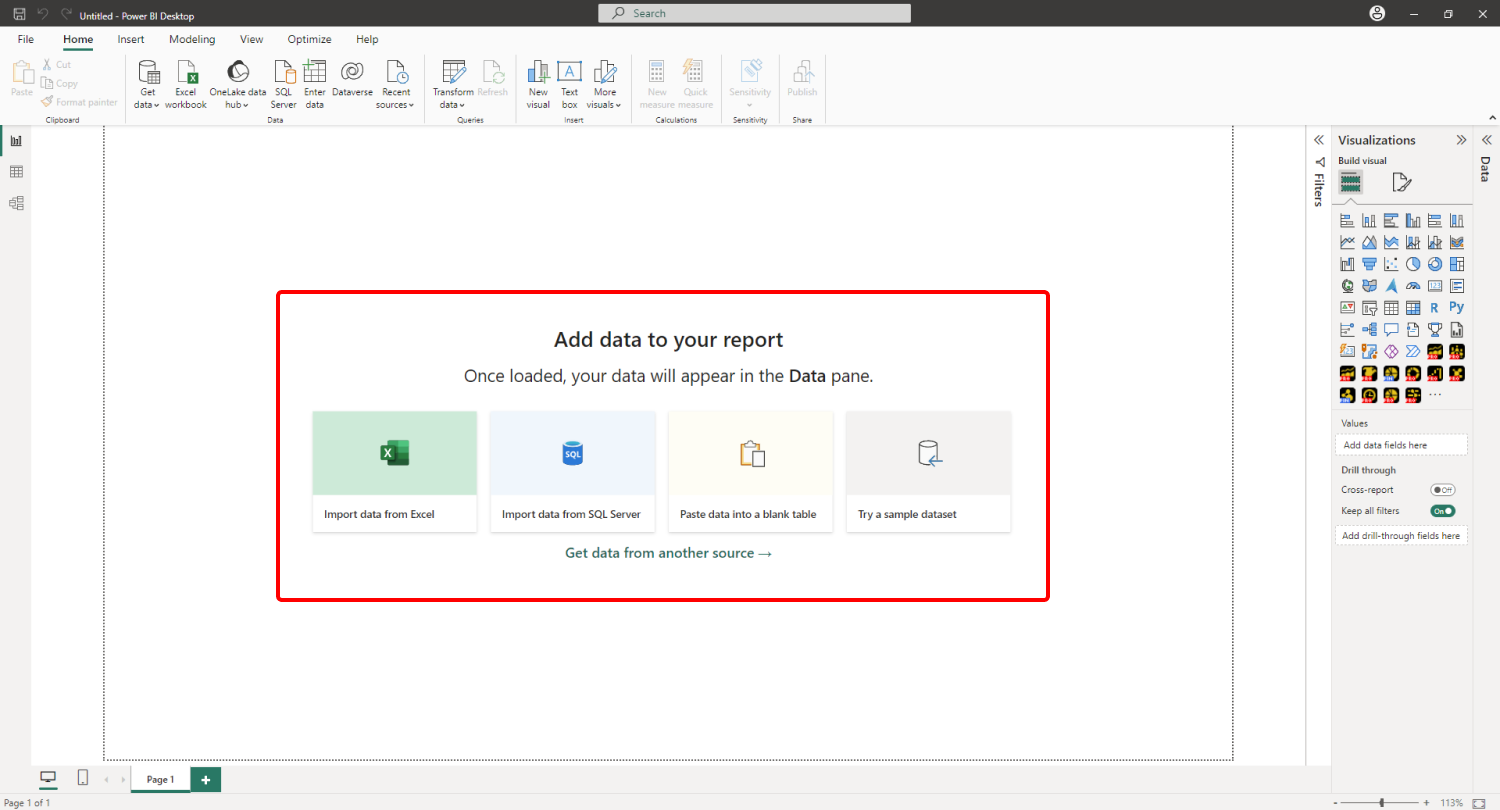

When you create a blank Power BI report, you will be presented with multiple options: you can import your own data, paste it into a blank table, or try a sample data set that’s provided by Power BI. The latter option is recommended if you want to experiment with the features of Drill Down Donut PRO without using your own data.

create_report
Adding Drill Down Donut PRO to Power BI

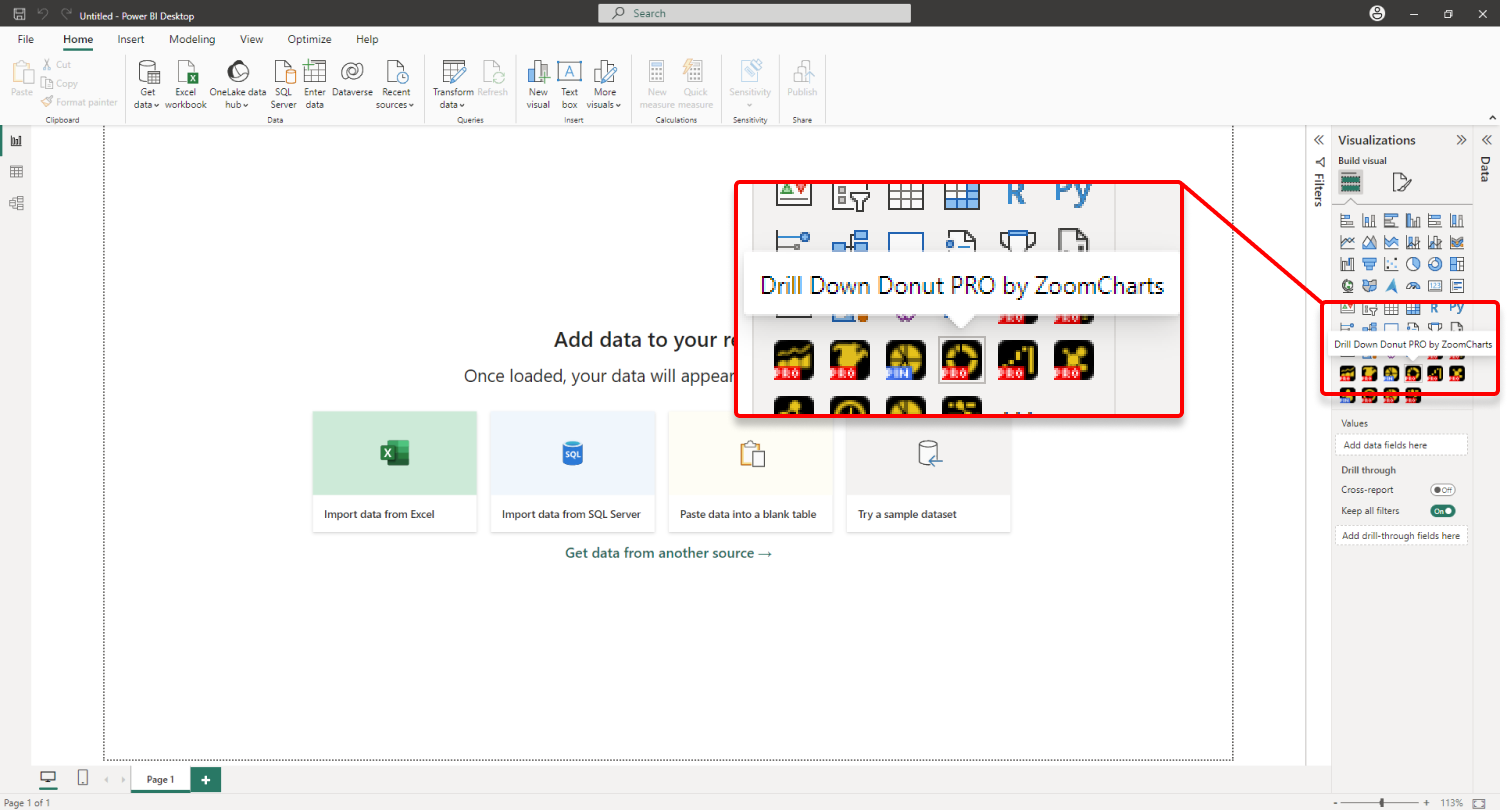

If you have downloaded this visual from Microsoft AppSource within Power BI Desktop, its icon should appear in the Visualizations pane on the right side of your Power BI window.

download_visual_from_appsource

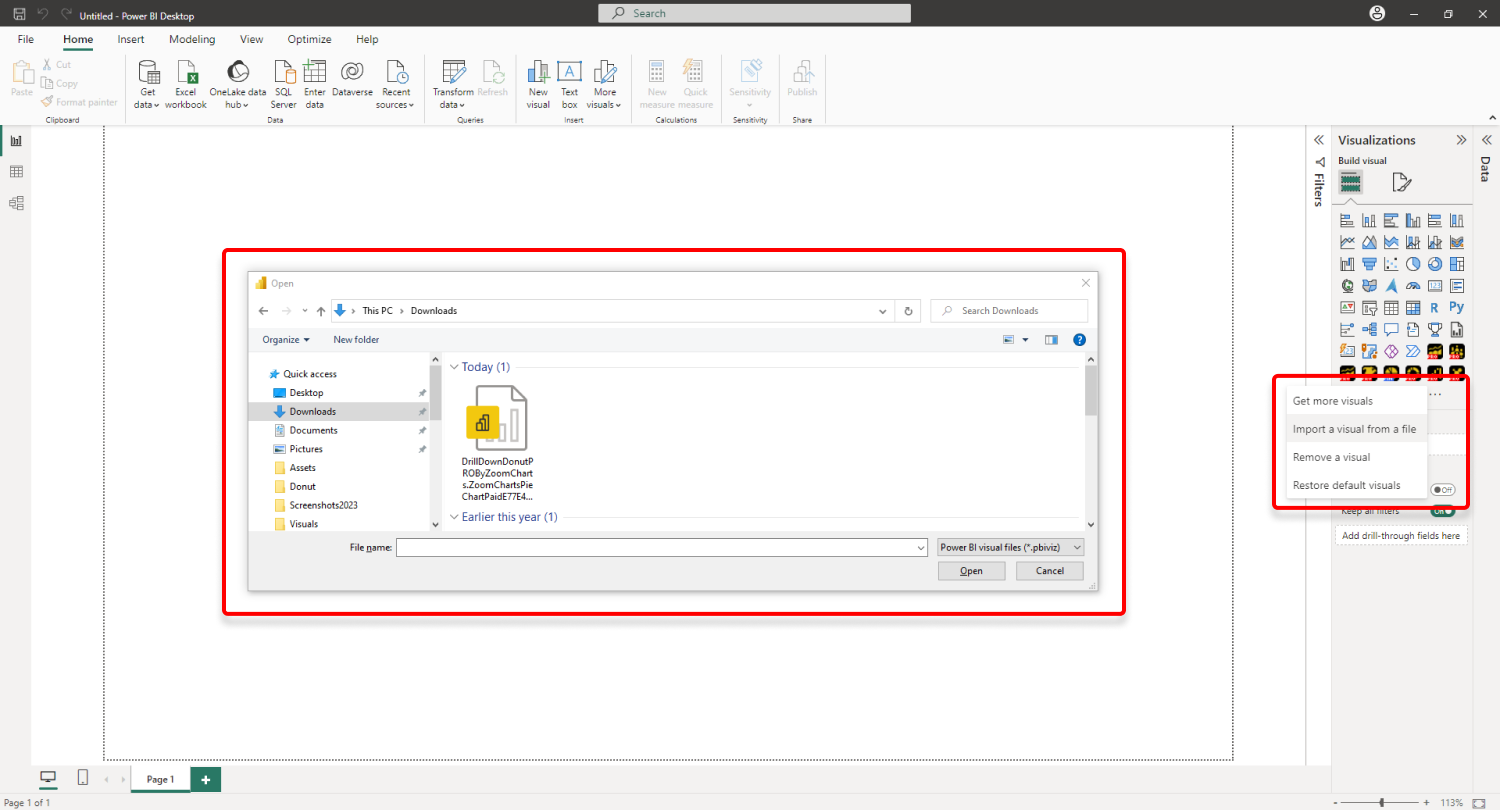

If you have purchased Drill Down Donut PRO or the Drill Down Visuals bundle externally, you may need to add it to Power BI manually. You can manually add the visual by clicking the ellipsis icon and pressing Import a visual from a file. Locate the .pbiviz file and the visual will be added to the Visualizations pane.

import_visual_from_a_file
You need to have a valid license to use the PRO features of this visual. Read more about licensing on this page.

Creating a donut visual with Drill Down Donut PRO

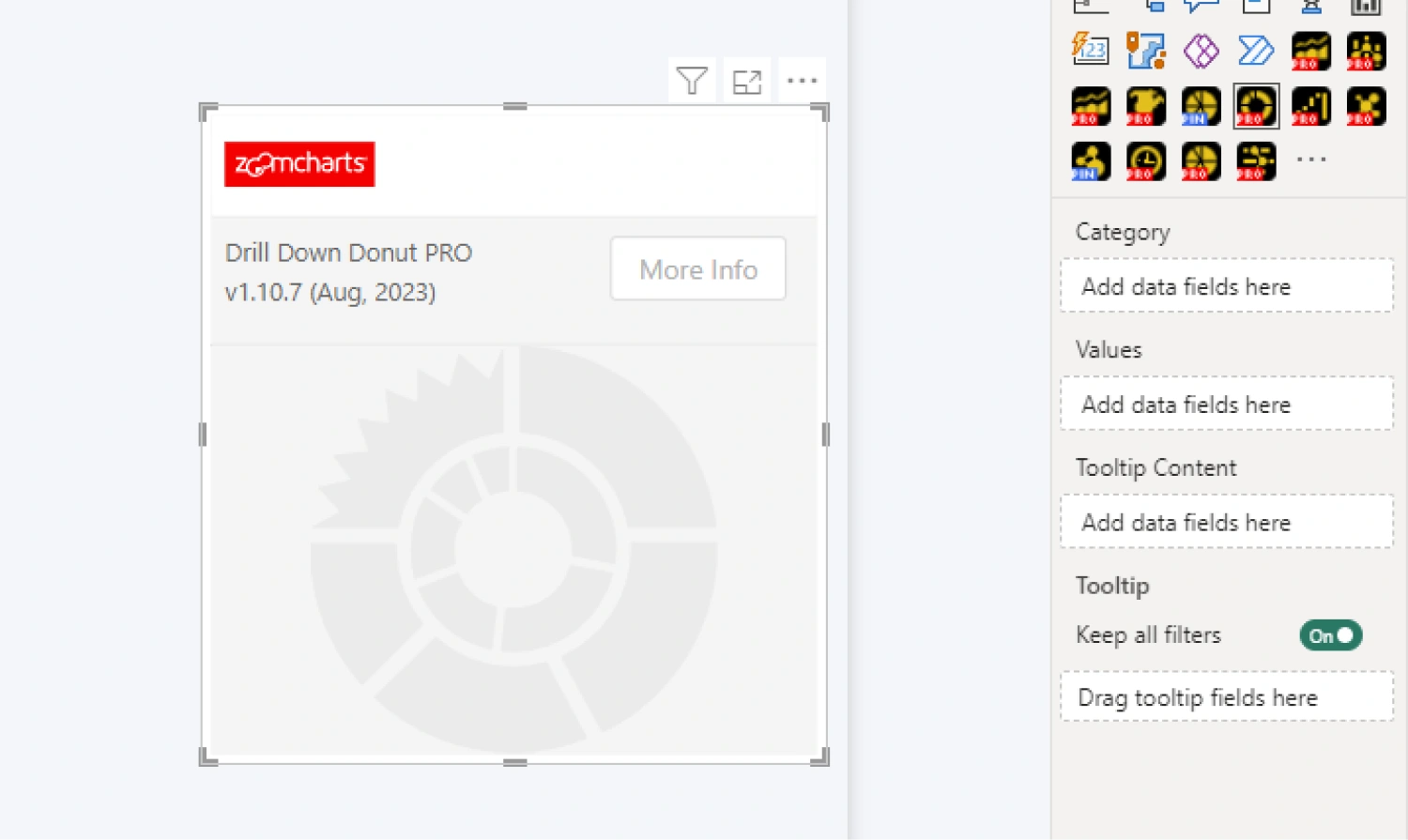

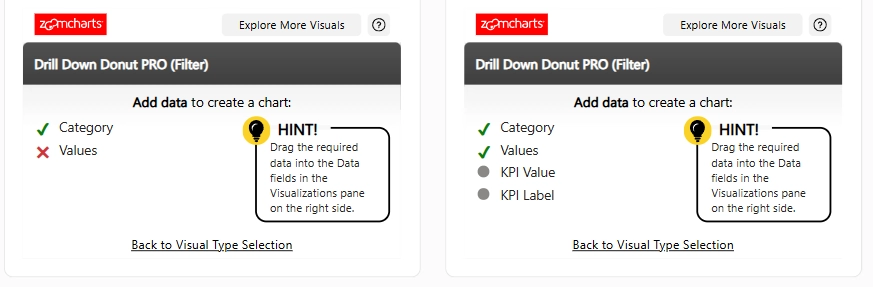

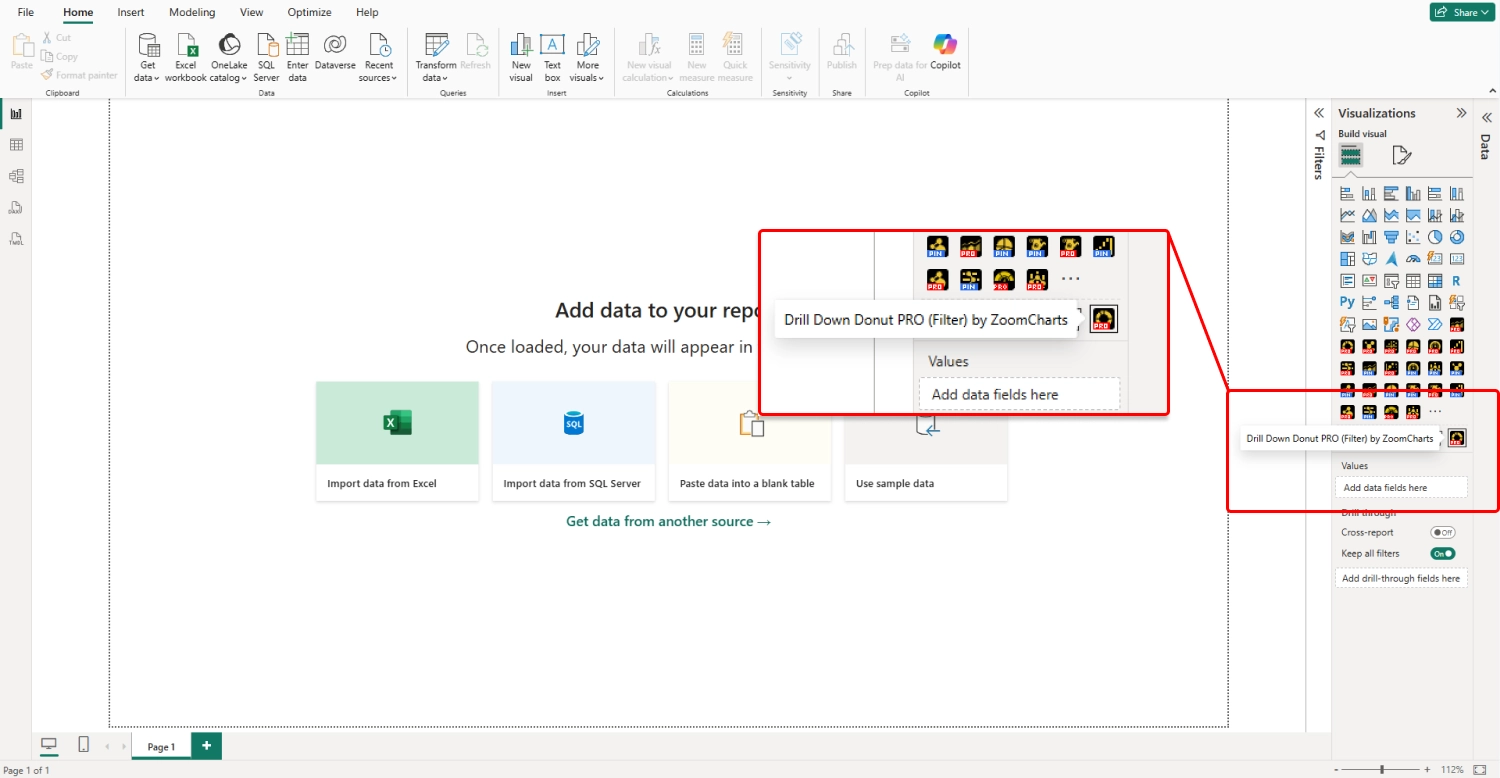

To add Drill Down Donut PRO to your Power BI report, click on the visual’s icon in the Visualizations pane. Doing so will create a blank visual that contains no data. Drill Down Donut PRO requires two fields – Category and Values, and it will create a donut chart after valid data is added to both fields. You can read more about the required fields in this page, and about optional fields in this page.


create_donut_visual

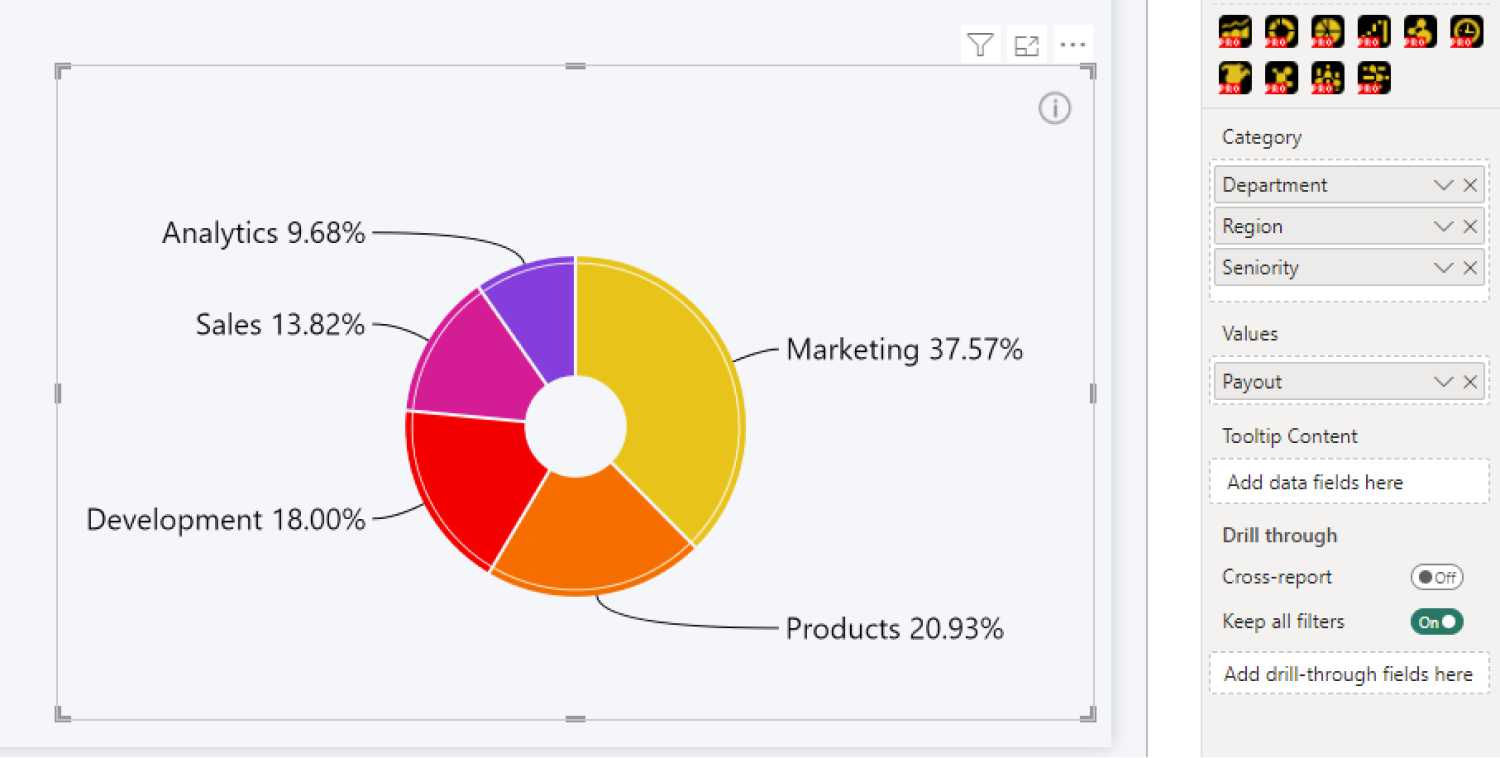

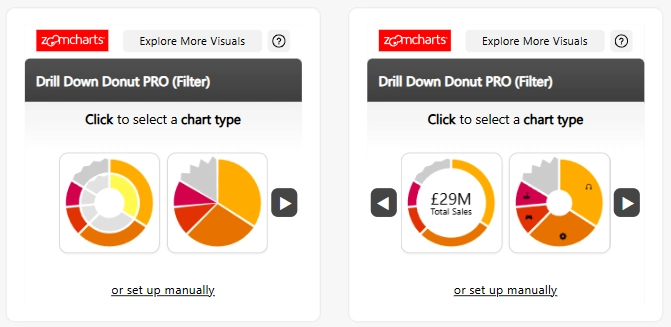

Category field is used to create donut slices, whereas Values field assigns numerical values to each category to determine the slice sizes and values. Adding multiple columns to the Category field will create a drill down hierarchy. The hierarchy will be determined by the category order in the field. Once you have added the required data, Drill Down Donut PRO will instantly create a donut chart.

add_data_to_donut
You have successfully created a donut visual with your data. You can now explore the Formatting Options tab to customize the look and behavior of your chart, including slice colors, legends, and labels. You can also enable and configure the Others slice to group smaller categories into one slice that can be expanded with a click; and enable cross-chart filtering to use your donut chart as an interactive filter for the entire report.
