Enable Fill Conditional Formatting to apply colors to a series based on its values.

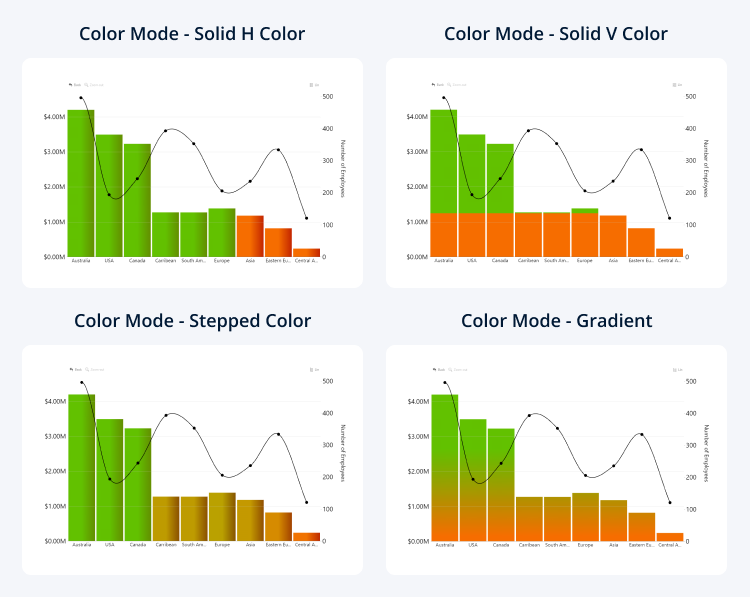

Color Mode
Select how colors are applied based on the configured color points.
- Solid H color – apply a single color to the entire category when the specified condition is met.
- Solid V color – apply a color only to the portion of the series that exceeds the specified condition.
- Stepped color – apply discrete colors based on the value's position between the configured color points.
- Gradient – create a continuous color transition between the configured color points.
- Color Field – apply colors based on values from the visual's Color field.
The selected Color Mode determines which additional settings are available, including value sources, functions, and start values.
To apply conditional series colors to markers, enable Line Marker Color. This setting is available for Line, Area, and Reference Line series when fill conditional formatting and markers are enabled.
