Thresholds

Thresholds can be used to visually compare your data against KPIs, performance targets or other benchmarks. Drill Down Combo Bar PRO supports up to four vertical thresholds on the same chart. You can set each threshold at a constant or calculated value (first, last, minimum, maximum, average, median, percentile) and display it as a line, area, or a change arrow.

Line thresholds require just one value - From Value, which will be used to determine the line placement. Area and change thresholds require From Value and To Value - for area thresholds, they will be used to set the boundaries of the threshold area, but for change thresholds, both values will be compared and the difference will be visualized as an arrow.

Once Thresholds toggle is enabled, further configuration options will become available for Threshold 1:

Threshold Type
From-Value Type
From-Series (available if From-Value Type is not 'Constant')
To-Value Type
To-Series (available if To-Value Type is not 'Constant')
Value Axis
Threshold Order
Fill Color
Fill Opacity
Line Color
Line Opacity
Line Width
Show Label (reveals additional settings once enabled)
Show Threshold (2,3,4)

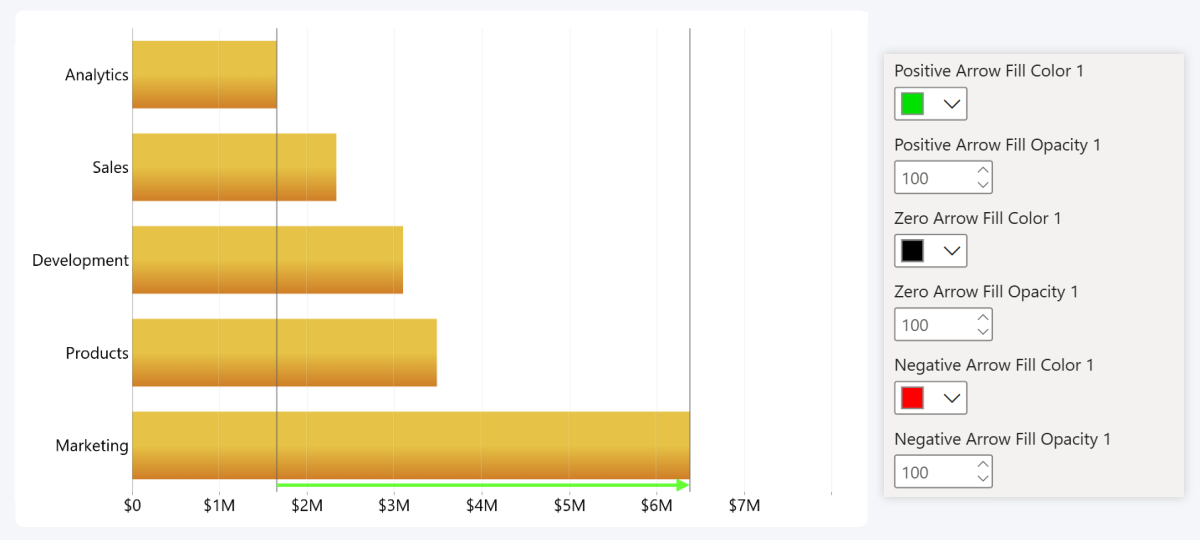

If your selected Threshold Type is 'Change', the following settings will be revealed that are exclusive to this threshold type:

By default, enabling Thresholds toggle will add one threshold to the chart, and the settings will be applied to Threshold 1. You can add more thresholds by enabling the Show Threshold 2, 3, or 4 toggles. Each enabled threshold will reveal the same set of configuration options as listed above, which you can use to configure each threshold's settings independently.
