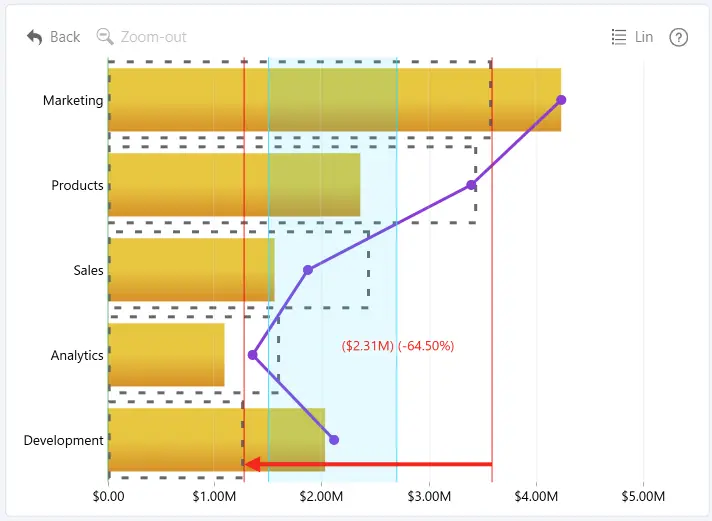

Thresholds can be used to visually compare your data against KPIs, performance targets or other benchmarks. Drill Down Combo Bar PRO supports up to four horizontal thresholds on the same chart. You can set each threshold at a constant or calculated value (first, last, minimum, maximum, average, median, percentile) and display it as a line or an area.

Once the Thresholds toggle is enabled, further configuration options will become available for Threshold 1:

• Threshold Type
• Value Type
• Value (available if Value Type is Constant)
• Series (available if Value Type is not Constant)
• Percentile (available if Value Type is Percentile)
• Value From (available if Threshold Type is Area)
• Value To (available if Threshold Type is Area)
• Value Axis
• Threshold Order
• Fill Color (available if Threshold Type is Area)
• Fill Opacity (available if Threshold Type is Area)
• Line Color
• Line Opacity
• Line Width
• Show Label (reveals additional settings once enabled)
• Show Threshold 2, 3 and 4

By default, the settings will be applied to Threshold 1. You can add more thresholds by enabling the Show Threshold 2, 3 or 4 toggle. Each enabled threshold will reveal the same set of configuration options as listed above, which you can use to configure each threshold’s settings independently.
