Min Visible Size

Min Visible Size

This setting, together with Max Visible Size, controls marker scaling in Drill Down Bubble PRO. Min Visible Size governs the minimum permitted marker size. Use a value between 1 (smallest) and 100 (largest) to set your desired marker size. This is a relative value that takes factors like viewport size, zoom level, users' DPI and others into consideration, and not an exact dimension. Use 0 if you wish to use automatic sizing.

If the Marker Size field has been populated, the Min Visible Size will be applied to the data point with the lowest value in the Marker Size column/measure. Conversely, Max Visible Size will be applied to the largest value, and all data points in between will be sized proportionally on a scale between these two values.

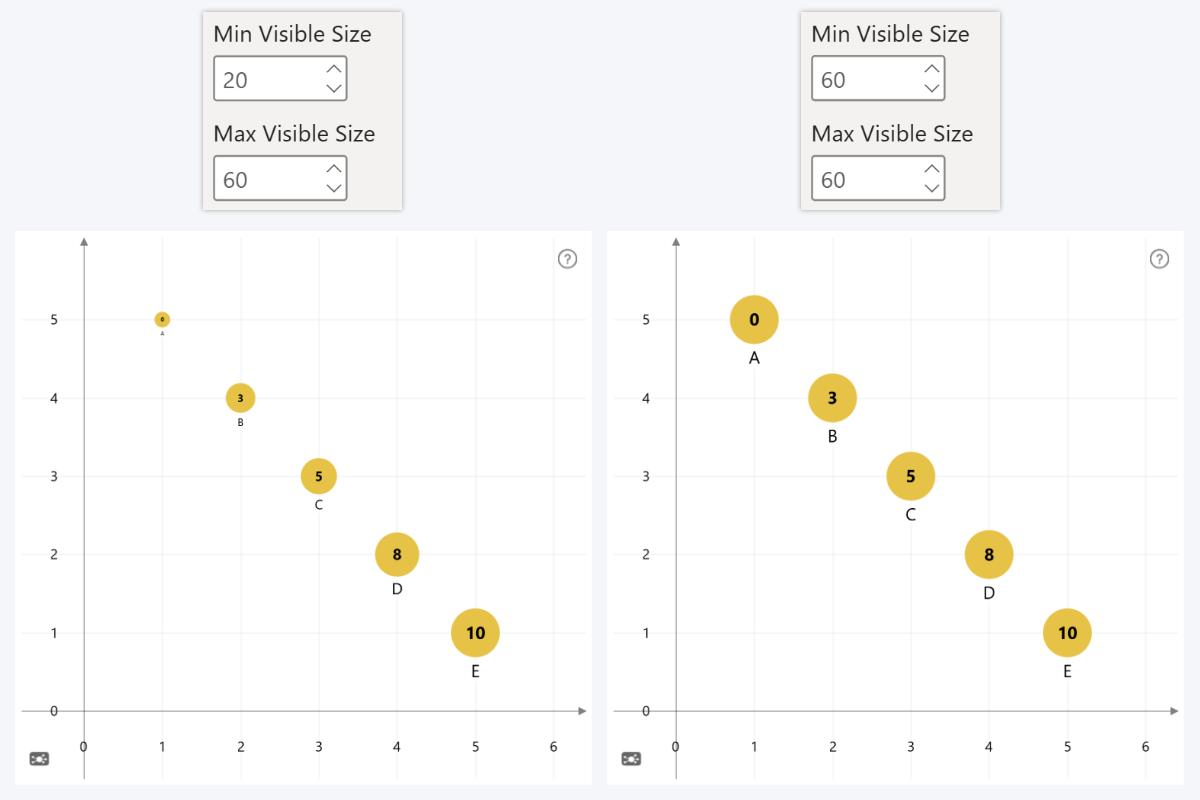

The image below shows a comparison between two Min Visible Size values. On the left side, data point A (with 0 as Marker Size value) uses size "20", and data point E (with 100 as Marker Size value) uses "60". On the right side, both Min and Max Visible Size are "60", which causes both A and E to have equal size.
