Max Visible Size

Max Visible Size

This setting, together with Min Visible Size, controls marker scaling in Drill Down Bubble PRO. Max Visible Size governs the maximum permitted marker size. Use a value between 1 (smallest) and 100 (largest) to set your desired marker size. This is a relative value that takes factors like viewport size, current zoom level, users' DPI and others into consideration, and not an exact dimension. Use 0 if you wish to use automatic sizing.

If the Marker Size field has been populated, the Max Visible Size will be applied to the data point with the largest value in the Marker Size column/measure. Conversely, Min Visible Size will be applied to the smallest value, and all data points in between will be sized proportionally on a scale between these two values.

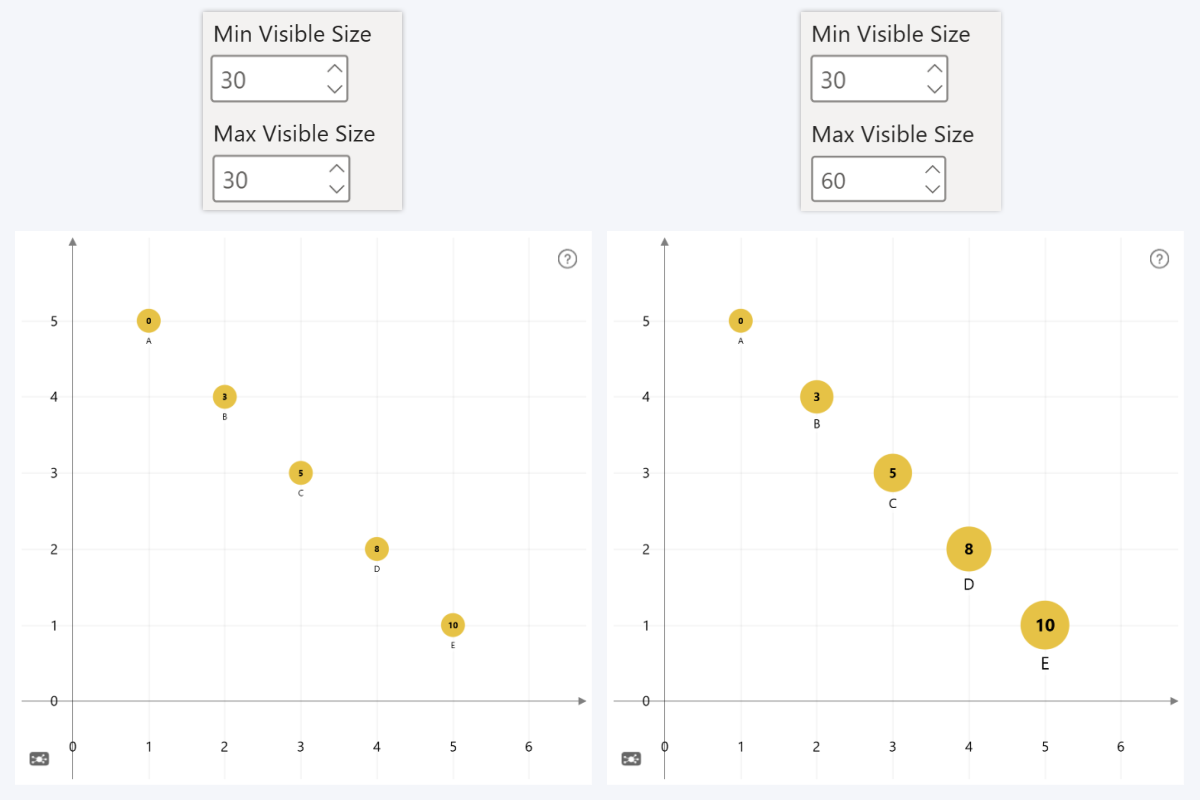

The image below shows a comparison between two Max Visible Size values. On the left side, both Min and Max Visible Size use an equal value ("30"), which causes all data point markers to have the same size regardless of their Marker Size column value. On the right side, we set Max Visible Size to a larger value ("60"), and the difference between markers are now much more pronounced - size "30" was applied to data point A (marker size field value 0) and "60" was applied to E (marker size field value 10).
